Overview

This project demonstrates a cloud security investigation workflow using application evidence and AWS-native services:

  • deployed a Flask application on an EC2 instance with a URL-fetching endpoint;
  • generated an SSRF-style request targeting the instance metadata service;
  • reviewed identity activity and API calls in CloudTrail;
  • reduced the risk by requiring IMDSv2, blocking internal destinations in the application, and applying least privilege to the IAM role.

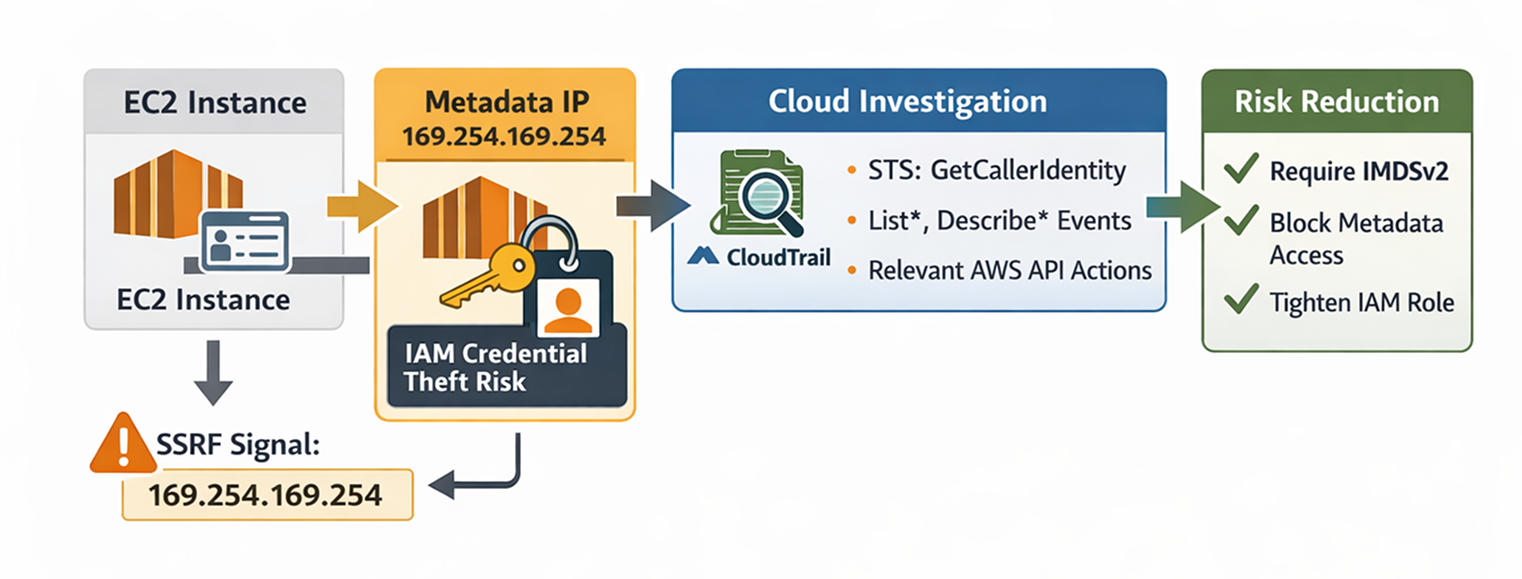

Proj-3 - Arquitetura - investigação de SSRF em nuvem

Controlled setup: EC2 application and overly permissive IAM role

I ran a small Flask service on an EC2 instance with a URL-fetching endpoint. For lab purposes, the instance used an IAM role with broader permissions than necessary, demonstrating how access to the metadata service could increase the impact of an SSRF vulnerability.

This was a controlled scenario using only disposable resources and non-sensitive data.

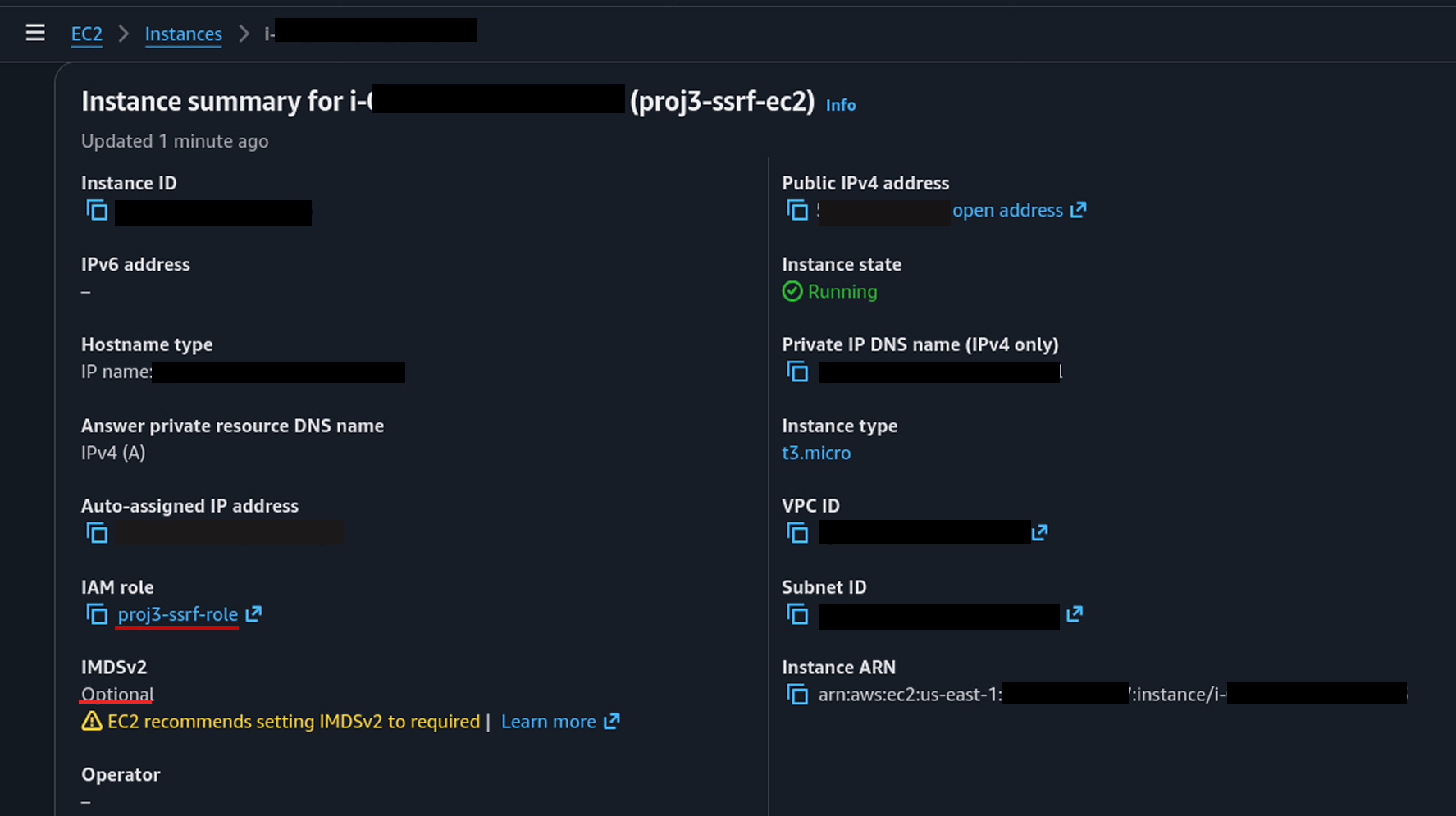

Proj-3 - Função IAM anexada à instância EC2

Signal: SSRF-style request in application telemetry

I sent a request to the /fetch endpoint targeting the EC2 metadata address (169.254.169.254), simulating an SSRF attempt against IMDS.

The focus of the project was investigation rather than exploitation. The relevant signal was that the application received a request targeting the cloud metadata service.

Proj-3 - Requisição SSRF registrada em JSON

CloudTrail investigation

Access to 169.254.169.254 was relevant because IMDS can provide instance information and temporary credentials associated with the IAM role.

I therefore reviewed identity activity and API calls in CloudTrail around the time of the suspicious request.

Within the analyzed window, I identified events such as:

  • GetCallerIdentity;
  • DescribeRegions;
  • DescribeInstances.

These events provided visibility into identity and enumeration activity associated with the analyzed period.

If temporary credentials had been exposed, a call such as sts:GetCallerIdentity would be relevant for confirming the AWS account and role context being used.

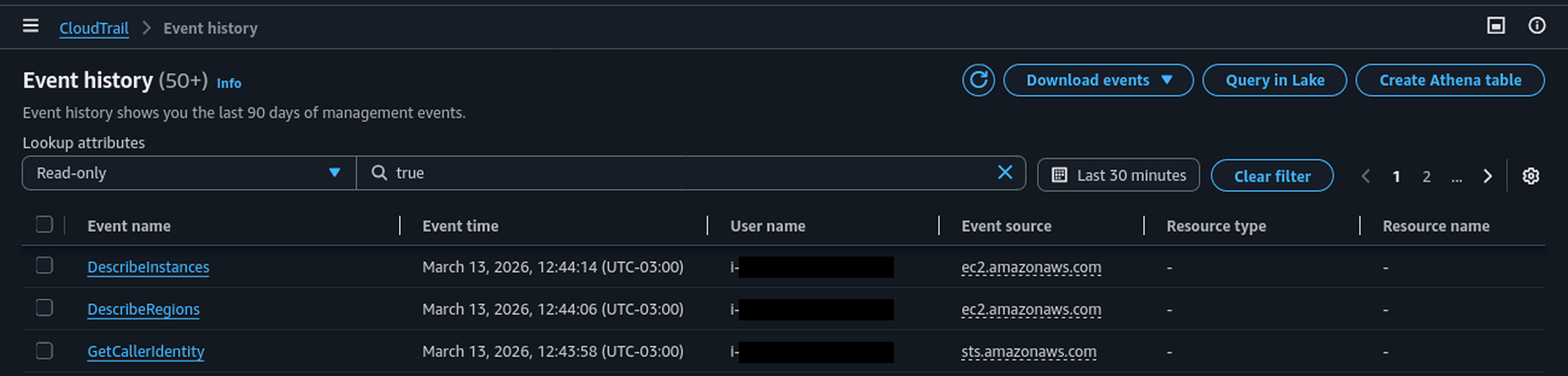

Proj-3 - Sequência no CloudTrail

Remediation: reducing the risk path

I applied three hardening measures in the lab to reduce the risk path between SSRF and cloud resource exposure:

  • required IMDSv2 on the EC2 instance;
  • blocked requests from the /fetch endpoint to the metadata service and local destinations;
  • reduced the instance role permissions according to the principle of least privilege.

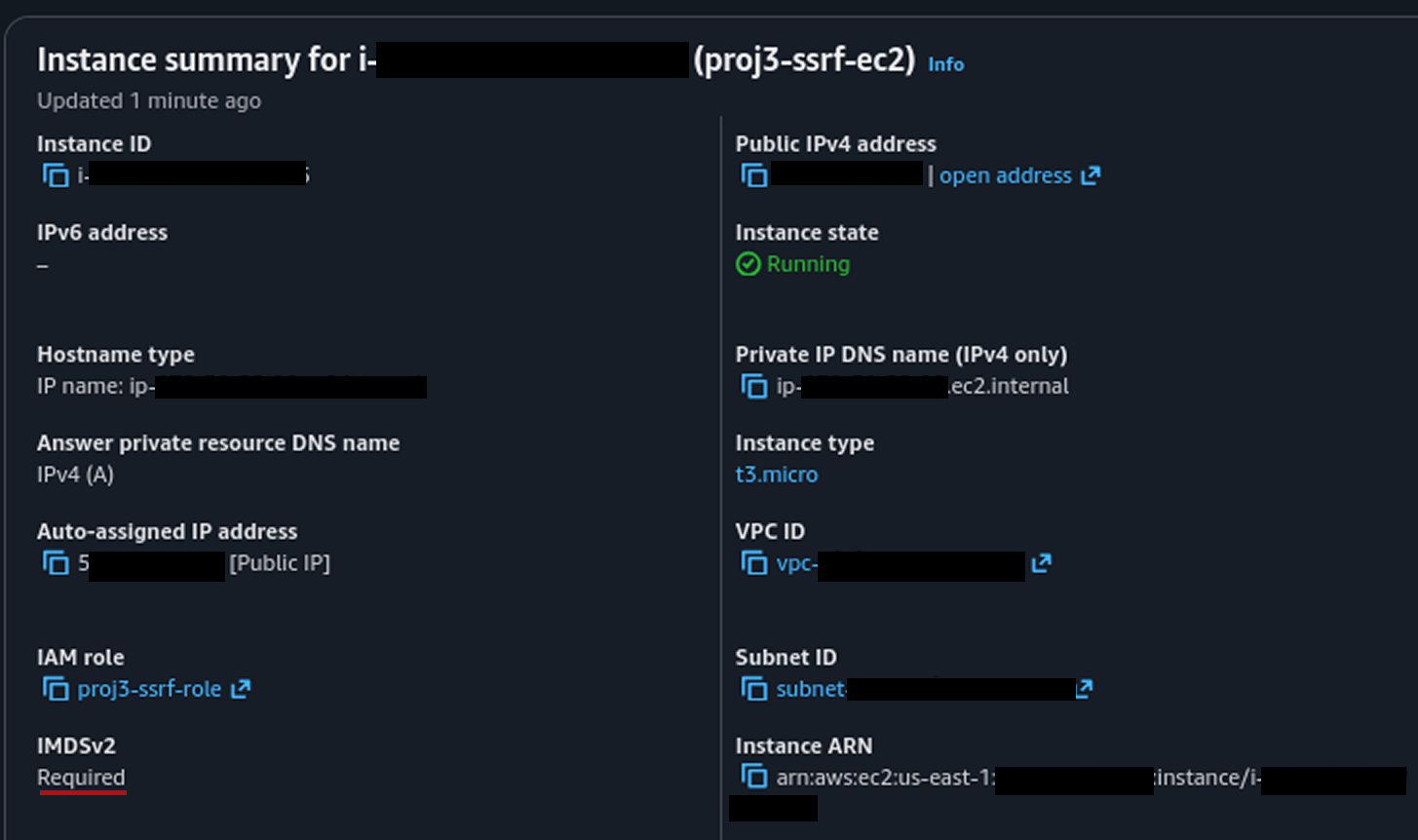

Proj-3 - IMDSv2 obrigatório

At the application layer, the control included destinations such as 169.254.169.254, 127.0.0.0/8, localhost, and 169.254.* ranges.

After the change, a new request to the metadata service returned 403 Forbidden.

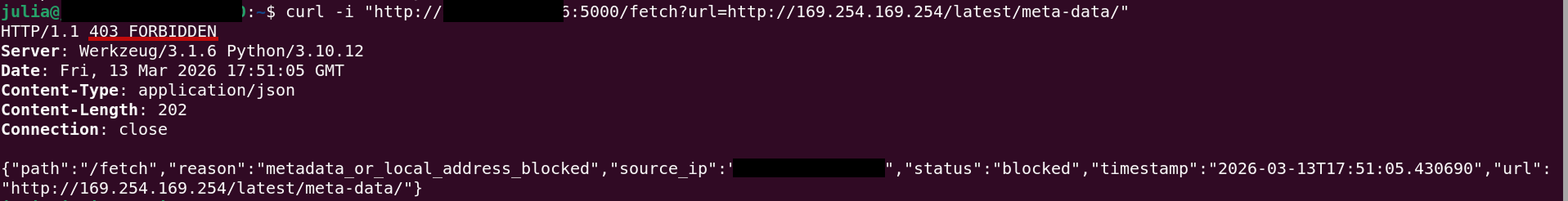

Proj-3 - Controle defensivo contra SSRF

As an improvement, this control could be expanded to validate IP addresses returned by DNS resolution and block additional private, loopback, link-local, and local IPv6 ranges.

Conclusion

After hardening, the same request returned 403 Forbidden while the signal remained visible in application telemetry. IMDSv2 also remained required, and the IAM role permissions were reduced.

The lab brought together a cloud security investigation workflow:

detect → review evidence in CloudTrail → remediate → replay the test → validate
